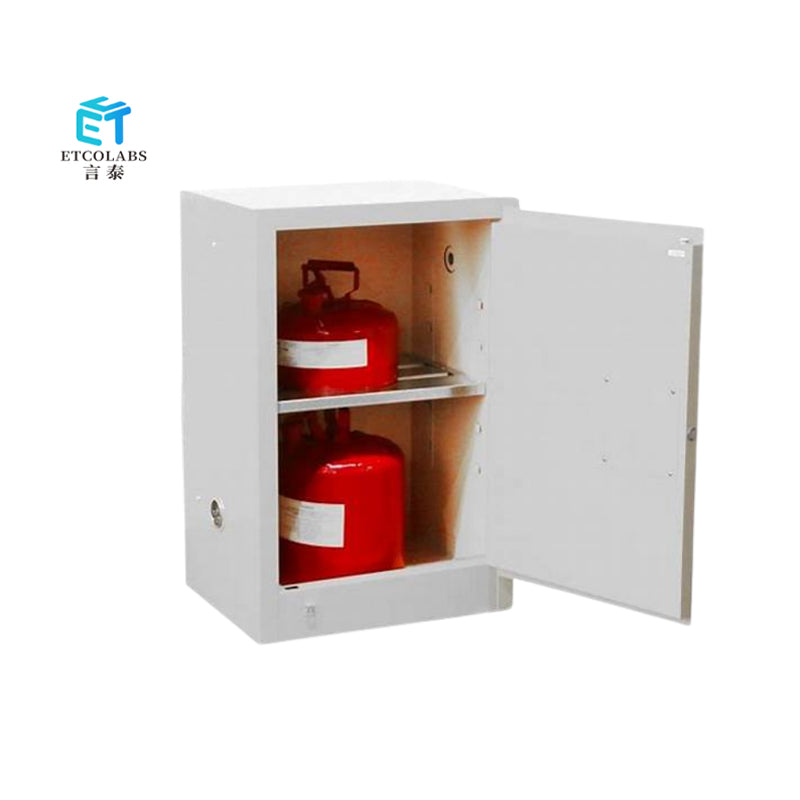

Flammable Chemical Storage Cabinets
$1,400.00
customers are viewing this product
Product Description
Flammable Storage Cabinets: Features & Benefits
1. Enhanced Safety
Constructed from double-walled, fire-resistant steel to protect flammable liquids (e.g., solvents, fuels) from external heat and sparks.
Leak-proof shelves and raised sills contain spills, preventing hazardous vapor release.
2. Compliance & Certification
Meets strict standards like OSHA 29 CFR 1910.106, NFPA 30, and EN 14470-1 (EU).
Labels and color-coding (e.g., yellow for flammables) ensure clear hazard identification.
3. Ventilation Options

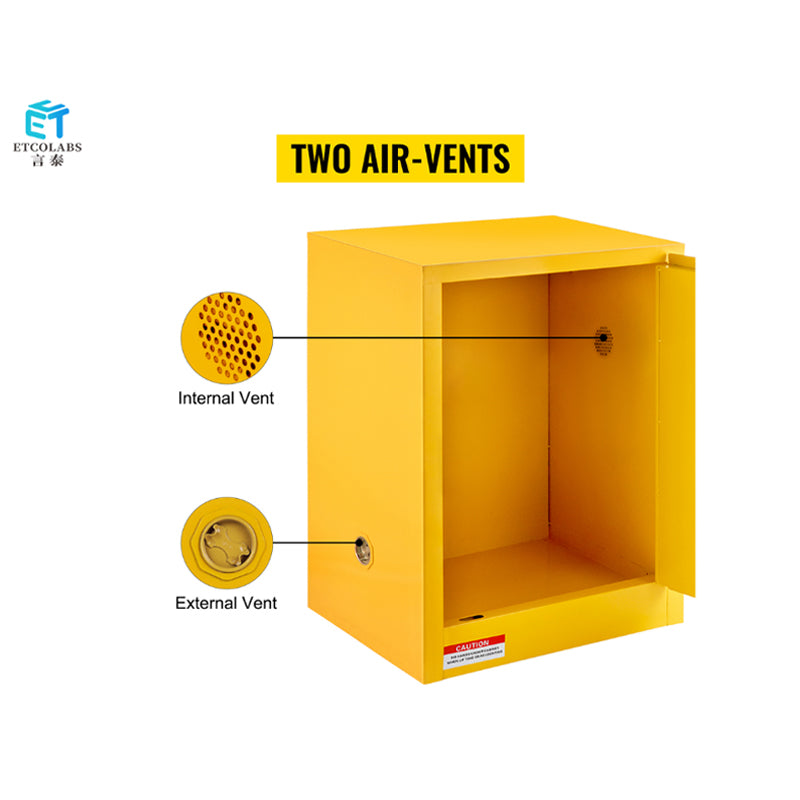

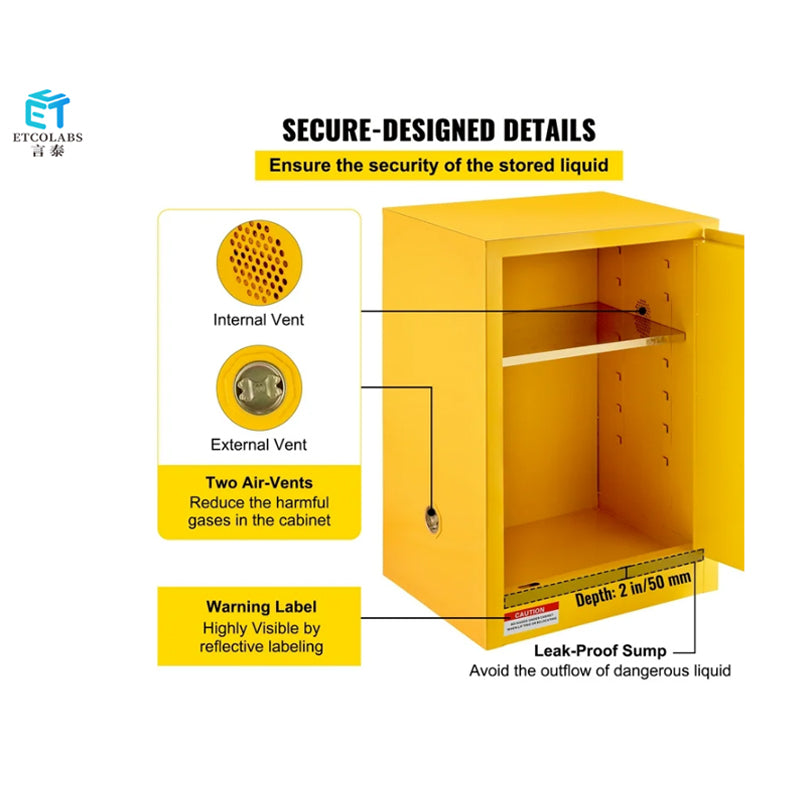

Pre-drilled vent bungs allow connection to exhaust systems, reducing vapor buildup (optional as per regulations).
4. Organizational Efficiency
Adjustable shelves accommodate containers of varying sizes (cans, drums, bottles).
Self-closing, latching doors prevent accidental exposure and unauthorized access.
5. Durability & Longevity
Powder-coated finish resists corrosion and chemical damage.
Compact designs save space while maximizing storage capacity.
6. Risk Mitigation
Isolates flammables from ignition sources, reducing fire/explosion risks.
Shields contents during emergencies, providing critical response time.
Key Benefit: A cost-effective solution to safely store hazardous materials, ensure regulatory compliance, and promote workplace safety.
1. Enhanced Safety
Constructed from double-walled, fire-resistant steel to protect flammable liquids (e.g., solvents, fuels) from external heat and sparks.
Leak-proof shelves and raised sills contain spills, preventing hazardous vapor release.
2. Compliance & Certification
Meets strict standards like OSHA 29 CFR 1910.106, NFPA 30, and EN 14470-1 (EU).
Labels and color-coding (e.g., yellow for flammables) ensure clear hazard identification.
3. Ventilation Options
Pre-drilled vent bungs allow connection to exhaust systems, reducing vapor buildup (optional as per regulations).
4. Organizational Efficiency
Adjustable shelves accommodate containers of varying sizes (cans, drums, bottles).
Self-closing, latching doors prevent accidental exposure and unauthorized access.
5. Durability & Longevity
Powder-coated finish resists corrosion and chemical damage.
Compact designs save space while maximizing storage capacity.
6. Risk Mitigation
Isolates flammables from ignition sources, reducing fire/explosion risks.
Shields contents during emergencies, providing critical response time.
Key Benefit: A cost-effective solution to safely store hazardous materials, ensure regulatory compliance, and promote workplace safety.
effective solution to safely store hazardous materials, ensure regulatory compliance, and promote workplace safety.
effective solution to safely store hazardous materials, ensure regulatory compliance, and promote workplace safety.
| Model | SYT-SC-FL -001 | |
| Material | Double-layer steel plate,the thickness of the steel plate ≥1.0mm. | |
| Shape | Rectangular | |
| Outside Size | H1650*W1090*D860mm | |
| Inside Size | H1550*W1010*D760mm | |
| Layer board Size | W1008*d760*H25mm | |
| Layer Quantity | Two layer boards,positions can be adjusted | |
| The load-bearing capacity of the layer board | Each layer board can bear a weight of more than 120 kilograms. | |
| Weight | 130kg | |
| Capacity | (90/340gallons/liters) | |
| Lockset | GA double lock | |

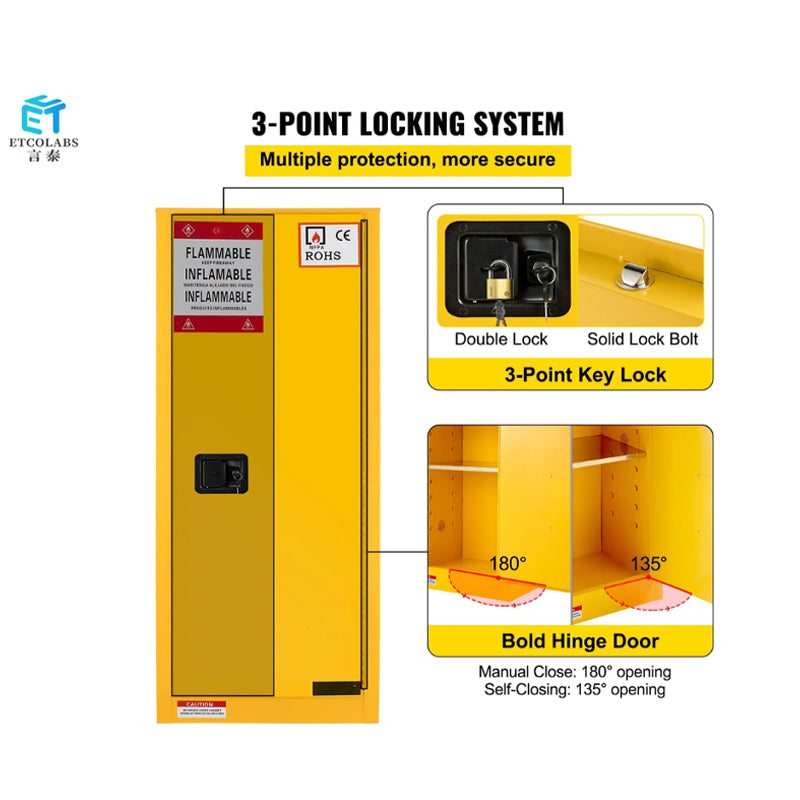

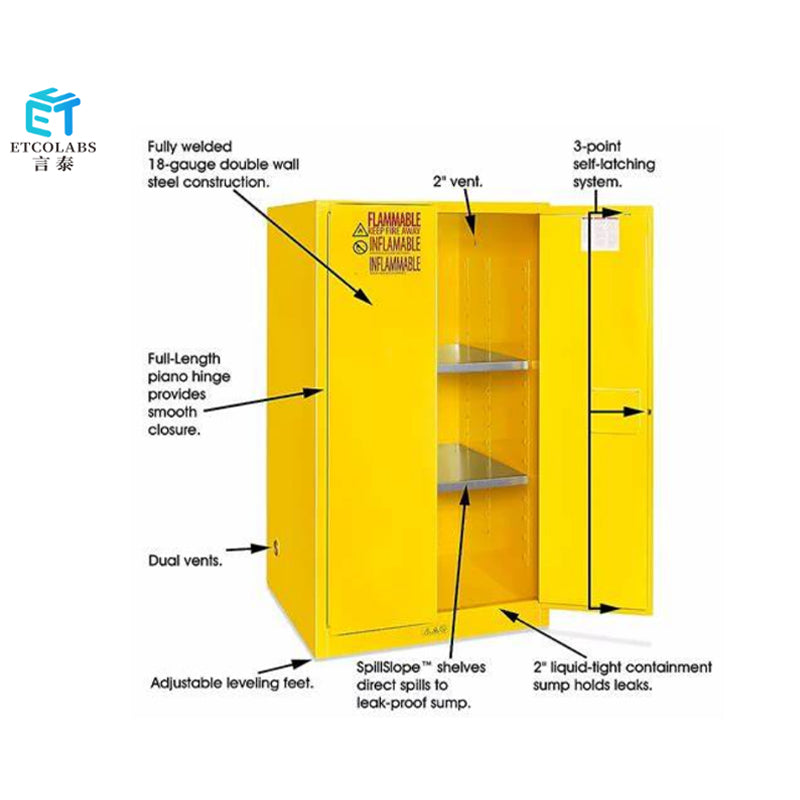

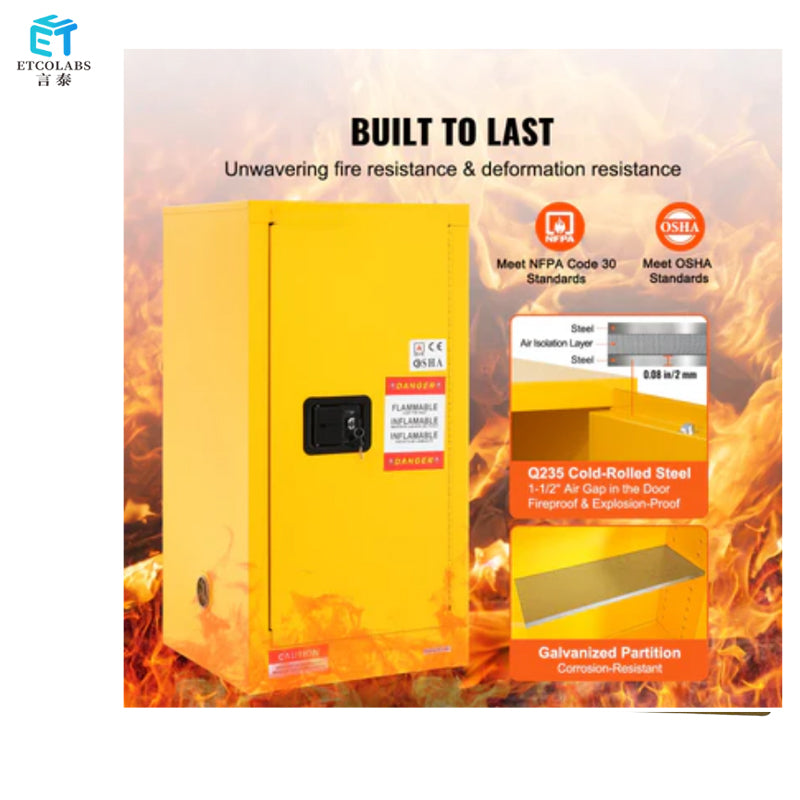

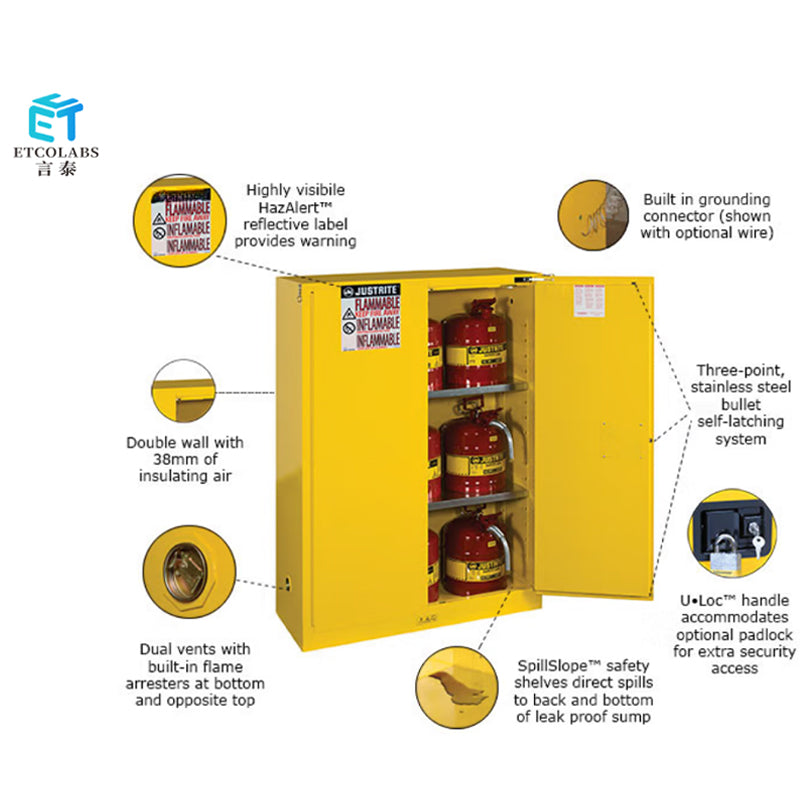

| Standard Feature | 1. It is fully constructed with double-layer fireproof steel plates. There is an insulating layer with a thickness of 38mm between the two layers of steel plates, which can effectively isolate the heat source. 2. The high-quality cold-rolled steel plates with a thickness ≥ 1.0mm are spot-welded, which gives it a longer service life and better fire resistance. 3. It uses a double GA locking device with a three-point linkage door lock, maximizing fire safety and enabling double-lock control. 4. The piano-type hinges allow for smooth closing, and it can be opened and closed at 180 degrees with ease. 5. The cabinet door is equipped with two keys, achieving the safety management of double locks by two people. 6. The anti-leakage liquid groove with a height of 50mm can prevent the accidentally spilled liquid from overflowing. 7. There are double ventilation holes with a fire prevention device, which are purposefully placed at the bottom and the opposite top. 8. The unique anti-overflow layer board can be adjusted freely up and down, and it can bear a weight of 120kg. 9. Both the inside and outside of the cabinet are coated with epoxy resin through electrostatic spraying, maintaining a high level of gloss and minimizing the influence of corrosion and moisture. 10. In strict accordance with OSHA specifications, the cabinet body is provided with an electrostatic grounding conduction port, making it convenient to connect the electrostatic grounding wire. |
|
| Color | Yellow | |
| Optional Function | 1. Fan: A fan is built into the top of the cabinet, which automatically extracts the air inside the cabinet to achieve ventilation within the cabinet. 2. Time control switch: Automatically controls the on-off time of the fan inside the cabinet according to time periods, and regularly controls the air circulation inside the cabinet. 3. Reinforced layer board: Reinforced galvanized layer board, which increases the load-bearing capacity. 4. 3M reflective label: With a strong reflective effect, it is resistant to high temperatures and does not blister. It can achieve a safety warning protection effect both during the day and at night. 5. Electronic combination lock: An electronic combination lock with a liquid crystal display, which realizes double-lock control. 6. Movable casters: Movable casters are installed on the cabinet body, making it convenient to move the cabinet. 7. Self-closing door device: A self-owned patented door closing system that meets the American FM standard. 8. Fuse door opener: Used for the self-closing door system. When the external temperature remains at 70ºC, it automatically disconnects and the door closes automatically to ensure the safety of the items. 9. Time control + temperature and humidity alarm: It can achieve real-time monitoring of the temperature and humidity inside the cabinet, and will automatically alarm when the set temperature and humidity are exceeded. 10. Vibration alarm: It will alarm when there is movement in the center of the cabinet, preventing theft and preventing the items inside the cabinet from tipping over due to movement. 11. Smoke alarm: Monitors and alarms for the smoke generated by the chemicals inside the cabinet. 12. PP tray: A corrosion-resistant polypropylene tray, which can be used with the layer board to store acid and alkali chemicals. 13. PP acid and alkali box: A uniquely designed storage box made of polypropylene, which can store acid and alkali chemicals. |
|
| Quality Control | The product has passed relevant certifications such as ISO 9001 Quality Management System Certification, ISO 14001 Environmental Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, and EU CE Certification. | |
| Fire Protection Rate | 10-90minutes | |
| Applicable Scenarios | Industrial Facilities,Laboratories,Automotive & Aviation,Healthcare & Cleaning Services,Warehouses & Storage Rooms,Educational Institutions | |
| Key Consideration | Ensure cabinets are placed in well-ventilated areas away from ignition sources. | |
| Origin | Shanghai,China | |
| Warranty | 10 years | |
| Production Capacity | 5000 PCS/Year | |
| Standard Export Packaging | Wooden crate + corrugated box with edge guards, mounted on a palletized base for ocean/land freight Moisture-proof film wrapping to prevent rust during transit |
|
| Loading Port | Wuxi/shanghai | |

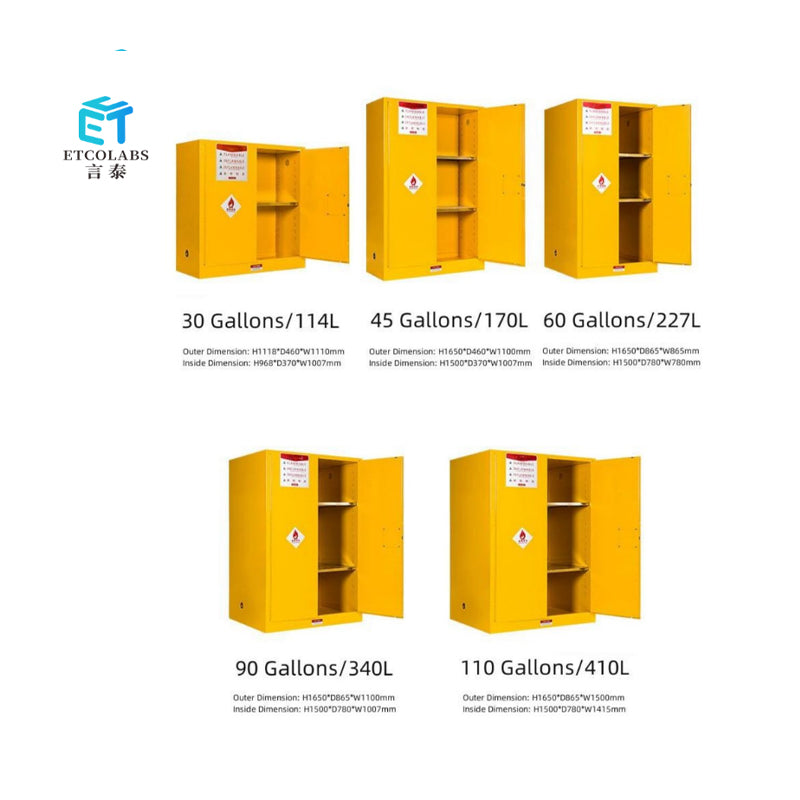

| other Size | Door | Layer Quantity | Weight | Capacity | Lockset |

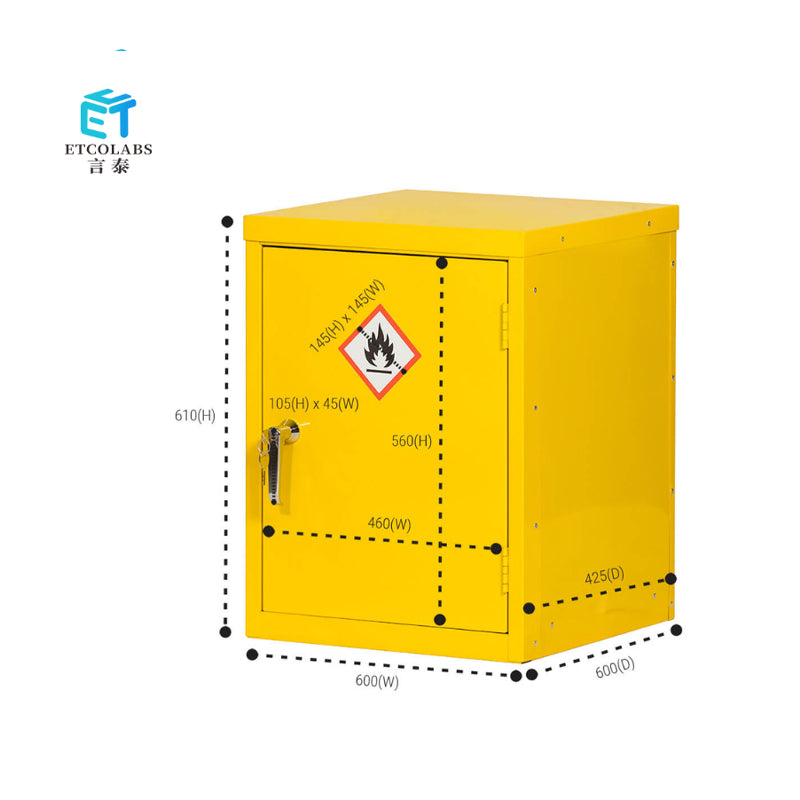

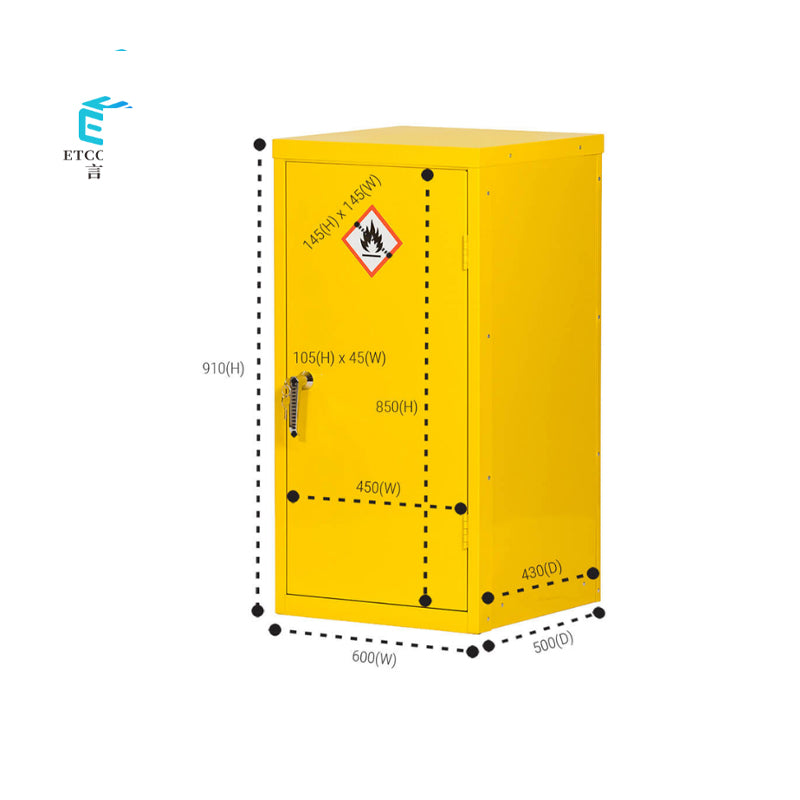

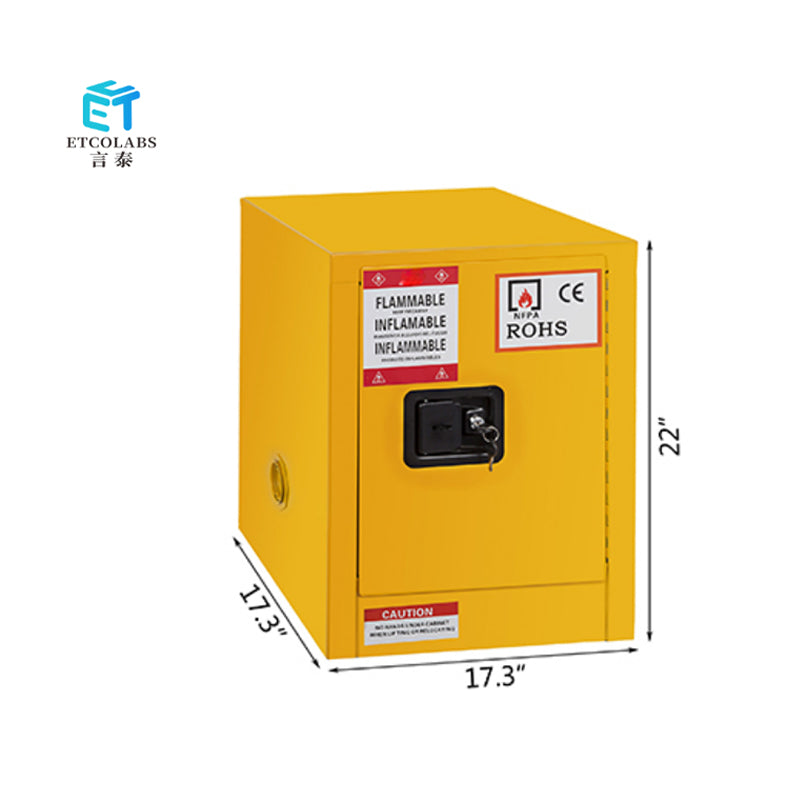

| H560*W430*D430 | single-leaf door | 1 layer ,positions can be adjusted | 25kg | (4/15gallons/liters) | GA double lock |
| H890*W590*D460 | single-leaf door | 1 layer ,positions can be adjusted | 40kg | (12/45gallons/liters) | GA double lock |

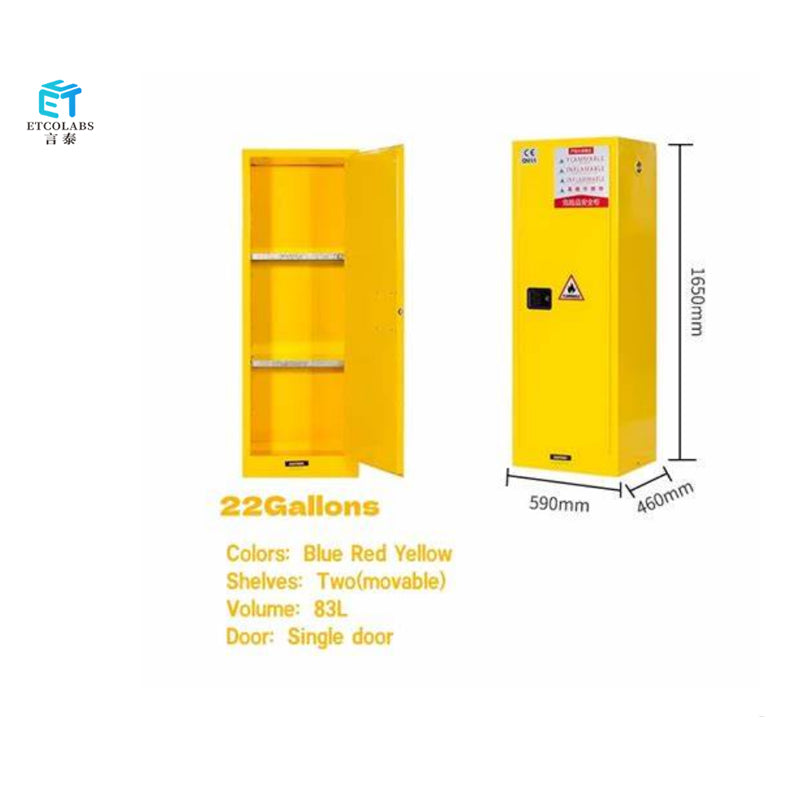

| H1650*W590*D460 | single-leaf door | 3 layers ,positions can be adjusted | 65kg | (22/83gallons/liters) | GA double lock |
| H1120*W1090*D460 | double-leaf door | 1 layer ,positions can be adjusted | 75kg | (30/114gallons/liters) | GA double lock |
| H1800*W900*D450 | double-leaf door | 4 layers ,positions can be adjusted | 105kg | (44/140gallons/liters) | GA double lock |
| H1650*W1090*D460 | double-leaf door | 2 layers ,positions can be adjusted | 95kg | (45/167gallons/liters) | GA double lock |
| H1650*W860*D860 | double-leaf door | 2 layers ,positions can be adjusted | 110kg | (60/227gallons/liters) | GA double lock |
| H1650*W1090*D860 | double-leaf door | 2 layers ,positions can be adjusted | 130kg | (90/340gallons/liters) | GA double lock |
